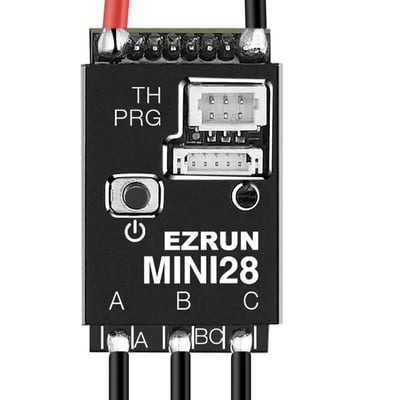

Hobbywing EZRUN Mini28 — compact sensored brushless ESC built for 1/28 scale competition. Pairs with 1626-size brushless motors; programmable via Hobbywing LCD G2 or OTA module.
1/28 sensored brushless ESC
The EZRUN Mini28 packs race-ready software into a 22.7 × 14.2 × 11.8 mm footprint — ideal for Mini-Z and other 1/28 on-road builds. Integrated alloy heatsink, 30A continuous / 80A peak, and 26 adjustable parameters including blinky and modified modes.
In the box
ESC with pre-attached input and motor wires (motor and program box sold separately).
Specifications
| Part number | 30101300 |
| Type | Sensored / sensorless brushless |
| Scale | 1/28 & 1/27 |
| Cont./peak current | 30A / 80A |
| Input voltage | 2S LiPo |
| BEC output | 6V / 7.4V adjustable, 3.5A peak |
| Motor compatibility | 1626-size brushless |
| Size | 22.7 × 14.2 × 11.8 mm |
| Weight | 5 g (without wires) |
| Programming | LCD G2 Program Box, OTA Programmer (via throttle wire) |
| Brand | Hobbywing |
